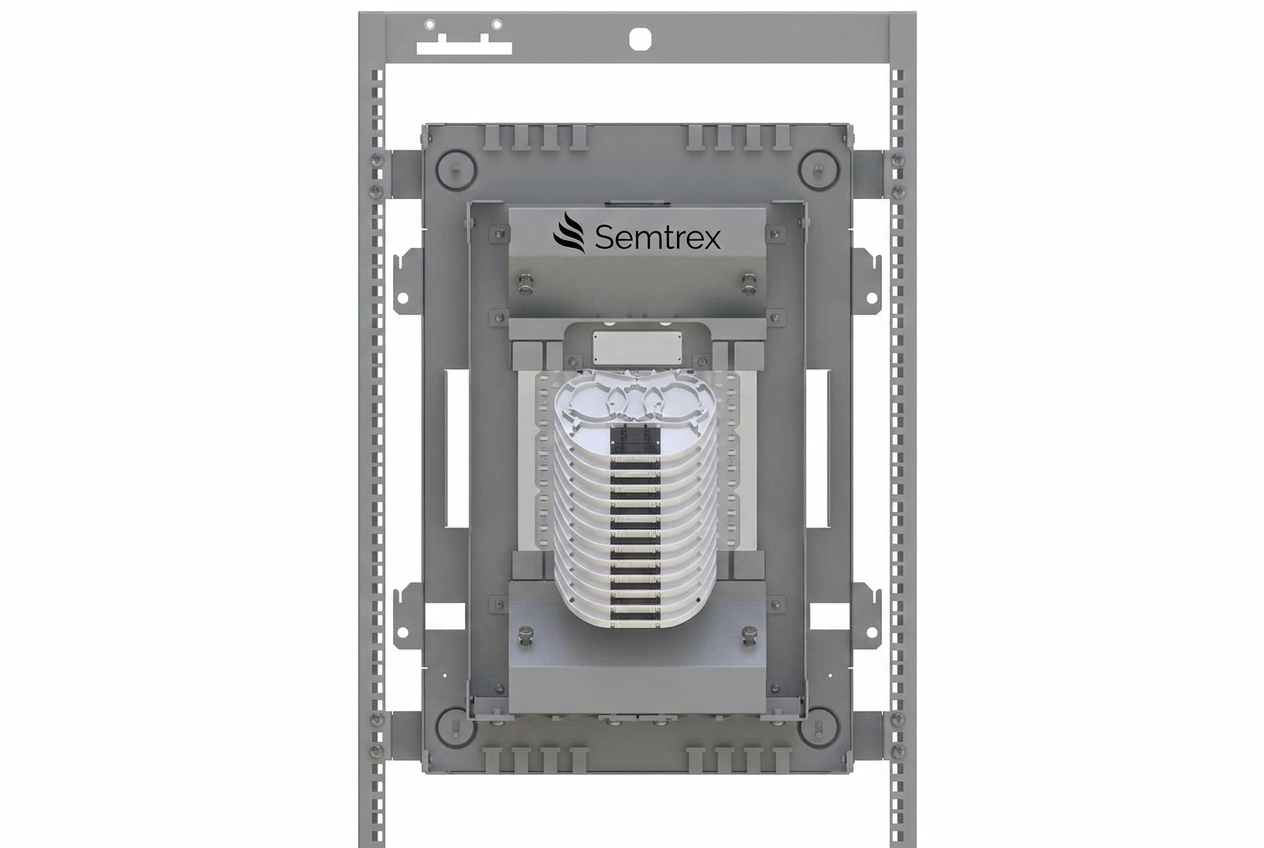

288 Single-Fiber / 864 Standard Ribbon / 1152 FiberFusion Splice Wall Cabinet

This innovative mass-fusion splice wall cabinet is designed for applications in a building entrance facility providing an enclosure to splice outside plant (OSP) cables to inside plant (ISP) cables with a maximum fiber count of 1152f. This cabinet can be fitted into areas with limited physical space and it can be installed as a single unit or multiple units can be stacked. It can be both wall-mounted or in mounted in standard 19” racks.

Cable pass-through spaces inside and outside the cabinet provide cable routing for the installation of multiple cabinets on a wall or rack.

The splice cabinet features 12 leaf-style trays which allow 24 single fiber splices per tray and a raceway manifold system which ensures the fiber is protected at all times. The cabinet accommodates a variety of cables from inside plant cable (12 x 24f) to outside plant cable (1 x 288f / 2 x 144f). It can also be used for standard ribbon splicing with 12 x 72f splice trays providing a total fiber count of 864f. When used with SWR cable, splicing is possible with 12 x 96f splice trays providing a total fiber count of 1152f. Note: these splice trays (SPT17-12) are not included and will need to be ordered separately).
